The bottom bracket is one of the most misunderstood components on a road bike. It sits invisibly inside the frame, never gets cleaned, and is usually only thought about when it starts creaking. Yet it is also one of the most impactful components for drivetrain efficiency and noise — and choosing the wrong bottom bracket for your frame and crankset is one of the most common and easily avoided workshop mistakes.
This guide explains every major road bike bottom bracket standard, how to identify which one your frame uses, the difference between steel and ceramic bearings, and which bottom bracket to buy. It is specifically written for riders running Shimano cranksets on carbon road frames — the most common configuration at Eminence Cycle Co.
What Does a Bottom Bracket Do?
The bottom bracket is the bearing assembly that allows the crankset to rotate smoothly within the frame's bottom bracket shell. On a road bike, the bottom bracket experiences more consistent rotational load than any other bearing on the bike — every pedal stroke drives force through the BB bearings, and bearing quality has a direct and measurable impact on drivetrain efficiency.
A worn or poorly specified bottom bracket causes creaking, increased pedalling resistance, and accelerated wear on the crankset spindle. A high-quality bottom bracket, particularly one using ceramic bearings, reduces friction and noise while extending service intervals.
The Four Main Road Bike Bottom Bracket Standards
BSA — British Standard Threaded
BSA (British Standard, also called English thread) is the oldest and most widely used bottom bracket standard in road cycling. It uses a threaded bottom bracket shell — 68mm wide on road bikes — with a left-hand (reverse) thread on the drive side and a normal right-hand thread on the non-drive side. The reverse thread on the drive side stops the cup from working loose under pedalling load.
• Shell width: 68mm (road) or 73mm (mountain bike)
• Thread: 1.37" x 24 TPI (drive side reverse thread)
• Removal: requires a bottom bracket cup wrench
• Common on: most steel and aluminium road bikes, many carbon bikes including some Colnago frames
BSA is the easiest standard to work with at home — threaded installation means secure fitting, easy removal, and no risk of the creaking that poorly installed press-fit BBs are notorious for. If your frame has BSA threading, a threaded ceramic BB is one of the most straightforward upgrades available.
BB30 — Press Fit, 30mm Spindle
BB30 was introduced by Cannondale and became widely adopted by carbon frame manufacturers in the 2000s as a way to use a wider, stiffer bottom bracket shell without adding weight from threading. Rather than threaded cups, BB30 uses bearings pressed directly into the frame's BB shell.
• Shell width: 68mm (road)
• Shell internal diameter: 42mm
• Spindle diameter: 30mm
• Common on: many carbon road frames from Specialized, Cannondale, Look, and others
BB30's reputation for creaking stems from bearings moving slightly within the frame's shell under load — a characteristic that ceramic bearing manufacturers have addressed with tighter-tolerance ceramic BB30 options that fit more securely and last longer than standard steel press-fit alternatives.
PF30 — Press Fit, 30mm Spindle
PF30 (Press Fit 30) uses the same 30mm spindle as BB30, but the frame has a larger 46mm bore and the bearings sit in cups pressed into the shell rather than directly against the frame. This was intended to reduce the creaking associated with bearing-to-frame contact in BB30 shells.
PF30 and BB30 use the same bearing size and are often confused, but the frames are different: a BB30 shell has a 42mm bore with the bearings pressed straight in, while a PF30 shell has a 46mm bore that takes cups. Many frames described as BB30 are technically PF30, so measure the bore or check your frame manufacturer's documentation to confirm which standard applies.
T47 — The Modern Threaded Standard
T47 is the newest major bottom bracket standard and represents a return to threaded installation philosophy — but with a larger 47mm threaded shell (M47 x 1mm) that accommodates the larger 30mm spindle cranksets used in modern road groupsets. T47 combines the installation security and noise resistance of threaded BBs with the wider shell dimensions of modern carbon frame design.
T47 is increasingly specified on premium carbon road frames and is considered by many frame engineers and workshop professionals to be the most practical standard for carbon road frames — avoiding the creaking issues of press-fit while enabling modern crankset specifications. Many high-end framesets including some current Colnago models use T47.
Steel vs Ceramic Bearings — Is It Worth Upgrading?
Standard road bike bottom brackets use steel bearings — functional, reliable, and adequate. Ceramic bearings use silicon nitride balls (Grade 3 or Grade 5) in place of steel, with three practical advantages:
Lower rolling resistance: ceramic balls are harder and smoother than steel, reducing friction between ball and race. The watt saving is real and measurable, though modest — typically 1-3 watts at road cycling cadences.
Longer service life: ceramic balls do not corrode and are significantly harder than steel, meaning they wear more slowly under the same load. A quality ceramic BB will typically outlast multiple steel BB replacements.
Reduced noise: ceramic bearings run quieter than steel, particularly as they age. The characteristic BB creak from worn steel bearings is less common with well-maintained ceramic alternatives.
At Eminence Cycle Co., we stock Tripeak ceramic bottom brackets as the official UK Tripeak distributor — available for BSA, BB30, PF30, and T47 standards in Grade 3 and Grade 5 specifications. Browse the full range in our bottom brackets collection.
How to Identify Your Bottom Bracket Standard
Step 1: Check your frame manufacturer's documentation. The BB standard is usually listed in the frame specifications on the manufacturer's website. Search for your frame model + 'bottom bracket standard'.
Step 2: Measure the shell. If you have access to a calliper, the internal diameter of the BB shell tells you the standard: an unthreaded 42mm bore = BB30. An unthreaded 46mm bore = PF30 (or BB386 EVO/BBRight on wider shells). A threaded shell of about 34.8mm (1.37") = BSA, 36mm = ITA, and 47mm = T47.
Step 3: Look at your existing bottom bracket. If it has threaded cups with a tool interface, it is BSA. If it has plastic cups that tap in, it is likely PF30. If it has metal cups with external threading, it may be T47.
Step 4: Contact us. If you are unsure, share your frame model with the Eminence Cycle Co. team and we will confirm the correct specification before you order.
Which Crankset Spindle Does Your Groupset Use?
The BB standard determines the shell. The crankset spindle diameter determines the bearing bore. For Shimano road cranksets (the most common configuration):
Shimano Dura-Ace R9200, Ultegra R8100, 105 R7100 — all use Shimano HTII 24mm spindle diameter. For BSA shells, Shimano's own SM-BBR60 cups work well. For BB30/PF30 frames, a 30mm-to-24mm adaptor BB is required. For T47, use a T47 cup set with 24mm bore.
Current SRAM road cranksets use the DUB spindle (28.99mm), so you need a DUB-specific bottom bracket or a 3-in-1 system that accepts DUB; older SRAM GXP cranks use a 24/22mm stepped spindle. Contact us if you are unsure which you have.
Recommended Bottom Brackets by Frame Standard
BSA threaded frame + Shimano crankset: Tripeak BSA ceramic bottom bracket — straightforward threaded installation, Grade 3 or Grade 5 ceramic bearings, significant upgrade over Shimano's OEM SM-BBR60.

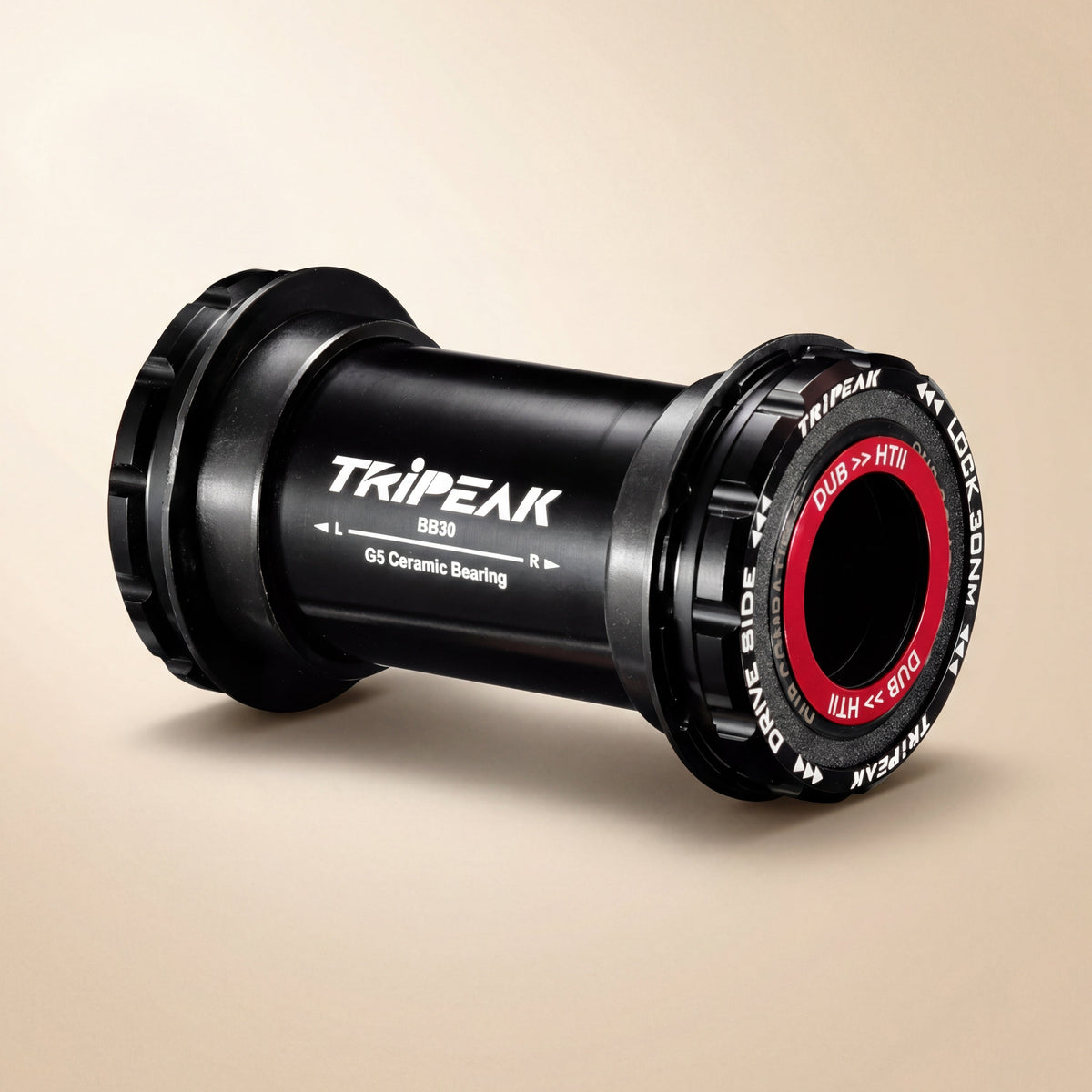

BB30 or PF30 frame + Shimano crankset: Tripeak BB30 ceramic bottom bracket with 30mm-to-24mm adaptor — tighter bearing tolerances than standard press-fit options reduce the creaking risk that standard steel press-fit BBs are prone to.
T47 frame + Shimano crankset: Tripeak T47 ceramic bottom bracket — threaded installation with modern shell dimensions. The best of both worlds.
Browse the full Tripeak ceramic bottom bracket range — BSA, BB30, PF30, and T47 — in our bottom brackets collection. As the official UK Tripeak distributor, every BB comes with genuine brand warranty and technical support.
Also explore the complete Tripeak range at Eminence Cycle Co. — including AOPW oversized ceramic pulley wheels and ceramic wheel bearings.
When Should You Replace Your Bottom Bracket?
Replace your bottom bracket when: you notice creaking from the BB area that persists after re-torqueing the crankset bolts. The cranks have measurable play side to side. The BB feels rough or notchy when rotated by hand with the chain removed. You are building a new frame or installing a new crankset — always start with a fresh BB.
A proactive replacement every 10,000-15,000km is good practice for riders in UK conditions where water ingress shortens bearing life.
